Home Page > Product > Interactive Displays > 5863RKS-C3T

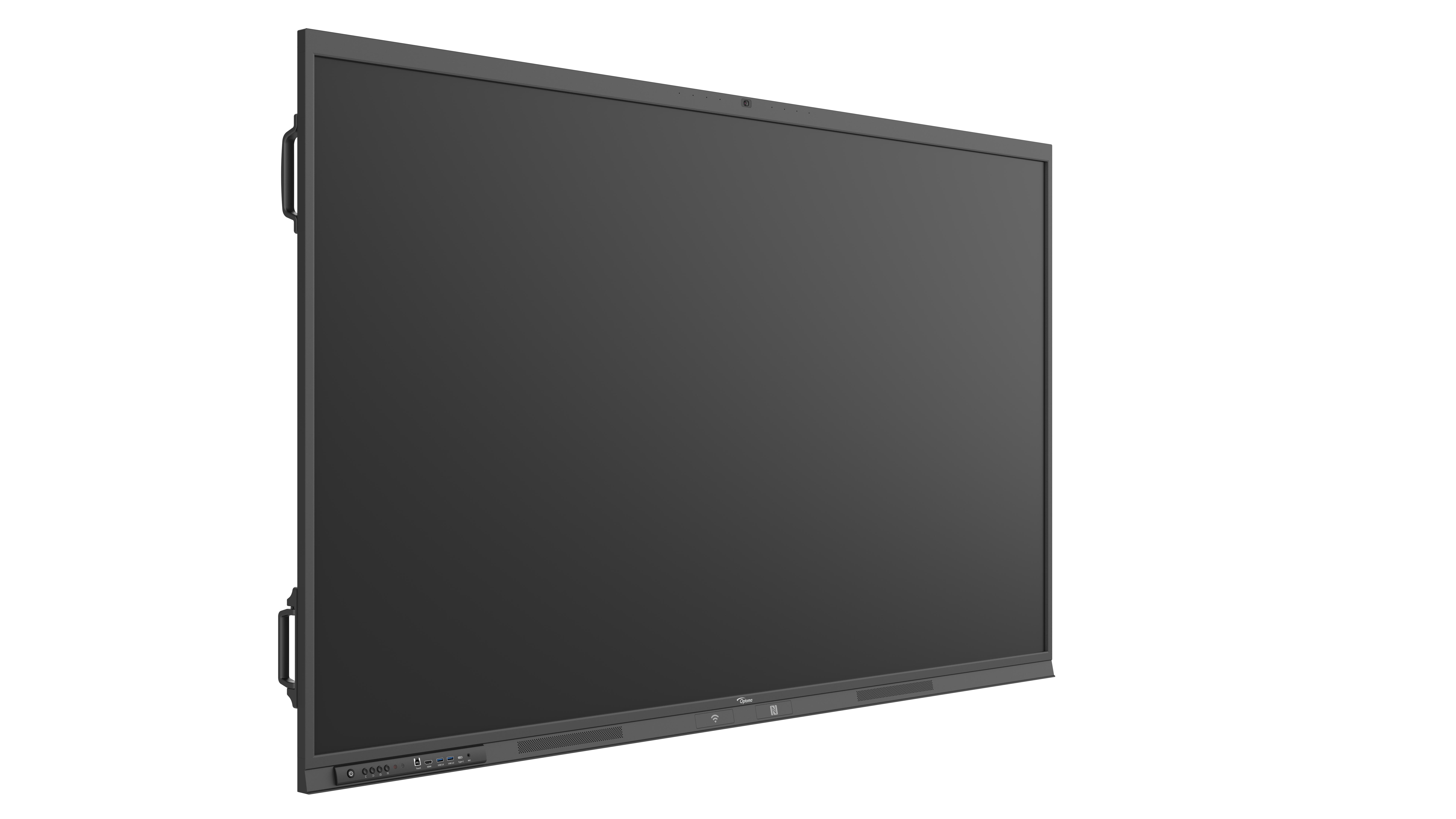

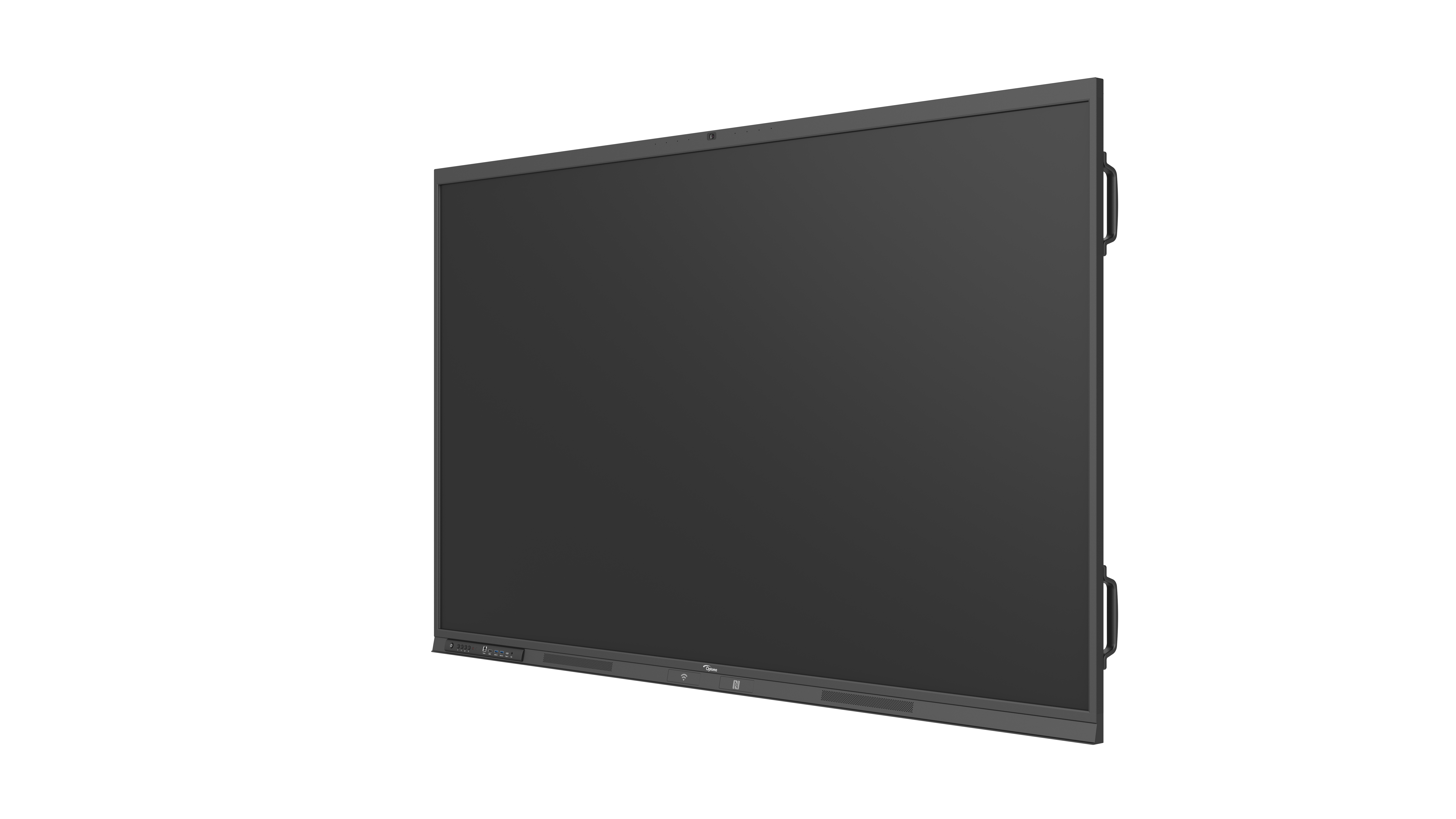

5863RKS-C3T

Creative Touch 5-Series

Create. Connect. Inspire.
Optoma’s interactive displays are designed to seamlessly support modern teaching and collaboration. Built on insights from educators, our solutions remove common classroom barriers and deliver an intuitive, user-friendly experience that enhances engagement and productivity.

Now featuring an integrated camera and microphone array, the display is ready for hybrid learning and video collaboration out of the box—no additional devices required. Whether in the classroom or remote, teachers and students can connect and interact effortlessly.
5863RKS-C3T
Features Specs Downloads

Ultra HD 4K resolution

With over eight million pixels, Ultra HD 4K resolution brings four times more detail than Full HD, to deliver sharper, life-like images and richer colours - allowing you to sit closer to the screen and enjoy a more immersive experience.
Specification
Display
Back light
Direct type LED
Size (diagonal)
86"
Resolution
3840(H)*2160(V) Pixel (4K UHD)
Brightness
500 cd/m2
Contrast ratio
4,000:1
Viewing angle
178°
Response time
8ms
Life
50,000 hours
Speaker Info
28W speakers*2 + 30W subwoofers*1
Surface hardness
7H
Glass
Anti-glare/Fingerprint / HAZE: 4-8%
Pencil hardness
9H
Touch resolution
32768 x 32768
Dimensions (W x D x H)
1971 x 140 x 1197
VESA holes
800*600
In the box
Touch Cable
HDMI Cable
Type-C Cable
AC Power Cord
Wirtting Pens
Remote Control
Wall mount
AAA Battery
Quick Start Guide
Connections
Front I/O:
Type-C in 1 (DP1.2,Touch,USB2.0, PD100W)
HDMI in 1 (2.0)
TOUCH out 1 (USB3.0-B)
USB Host 2 (USB3.0 Public)
Microphone In (Line in) 1 (3.5mm)

Rear I/O:
HDMI in 2 (2.0)
DisplayPort in 1 (DP1.2)
Type-C in 1 (DP1.2,Touch,USB2.0, 5V@3A)
USB 3.0-A Host 3 (1*Android,2*Public)
TOUCH out 3 (USB3.0-B)
HDMI out 1 (2.0)
Type-C out 1(DP1.2/USB3.0 OTG)
RS232 1
SPDIF out 1(Optical)
Mic in 1 (3.5mm)
RJ45 2 (1000M)
TF Card 1
OPS Slot 1 ( 4K@60Hz)
Operating conditions
-10℃- 40℃
Net weight
63.5 kg
Gross weight
82 kg
Wireless - technology
802.11ac/b/g/n/a/ax
Wireless - operating frequency
2.4Ghz/5GHz
Built-in camera
48 MP
Built-in microphone
8 arrays
Touch accuracy
1.00mm
Touch point
Up to 50 points touch (50 points touch in Android, 50 points touch in Windows)
Touch tool
Finger, Passive infra-red pen
Power supply
100-240V~ 50/60Hz
Power consumption (standby)
0.5W
Power consumption (max)
480W
Power consumption (eco)
200W
System version
Android 16
CPU
Octa-core (A76*4 + A55*4)
GPU
Mali G610 MC4
RAM
16GB
Storage
256GB
